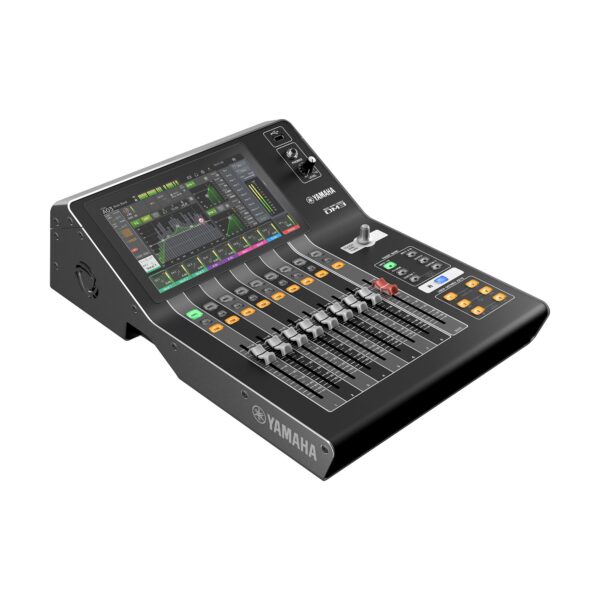

Yamaha DM3 Standard

Artikelnr. 5009101

 1.500,00

exclusief 21% BTW

Bekijk uw Lease prijs

Looptijd

Maandbedrag

12 maanden

€128,-

24 maanden

€65,-

36 maanden

€45,-

48 maanden

€34,-

Beschikbaar via nabestelling

The portable DM3 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The DM3 Standard offers superb sound quality, fast and easy setup and operation, and professional-level features.

DM3 Standard
Mixing Capacity Input Channels 16 mono + 1 stereo + 2 FX return
Mix Buses 6
Matrices 2 (Supports Input to Matrix)
Stereo Buses 1
FX Buses 2
Cue Buses 1
I/O Connectors Analog Input 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
Analog Output 8 (XLR)
Dante
Network 1 (RJ-45)
USB TO HOST 1 (USB Type-B, USB2.0)
USB TO DEVICE 1 (USB Type-A)
Phones 1 (TRS Phones)
DC 1 (XLR 4pin, DC power IN)
User Interface 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x “Touch and Turn” rotary encoder
Recording & Playback PC/Mac Recording 18 track, Playback 18 track
USB storage device Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)
Sampling frequency rate 96 kHz / 48 kHz
Signal delay Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz)
Frequency response +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT
Total harmonic distortion Less than 0.01 % 20 Hz – 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1
Hum & noise level Equivalent input noise -126 dBu typ., Input Gain= Max.
Residual output noise -84 dBu, ST main off*2
Dynamic range 110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Crosstalk -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3
Power requirements DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
Power consumption 43 W
Dimensions W 320 mm (12.6″)
H 140 mm (5.6″)
D 455 mm (18.0″)
Net weight 6.5 kg (14.3 lb)
Included Accessories Owner’s Manual, Power Adapter, Download Information
Accessories RK-DM3
Operating temperature 0 – 40 °C
Storage temperature -20 – 60 °C
  • *1 Total Harmonic Distortion is measured with a –18 dB/octave filter@80 kHz.
  • *2 Hum & Noise are measured with an A-Weight filter.
  • *3 Crosstalk is measured with a –30 dB/octave filter@22 kHz.
