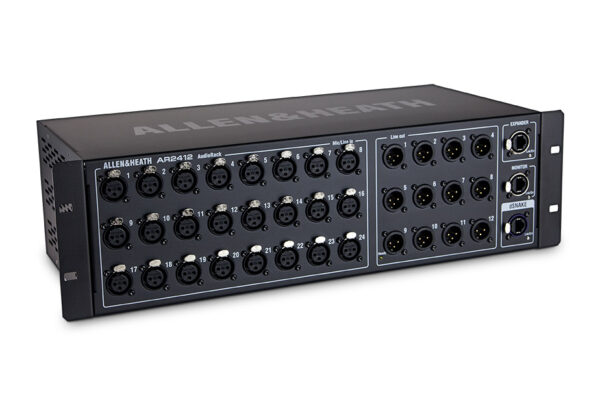

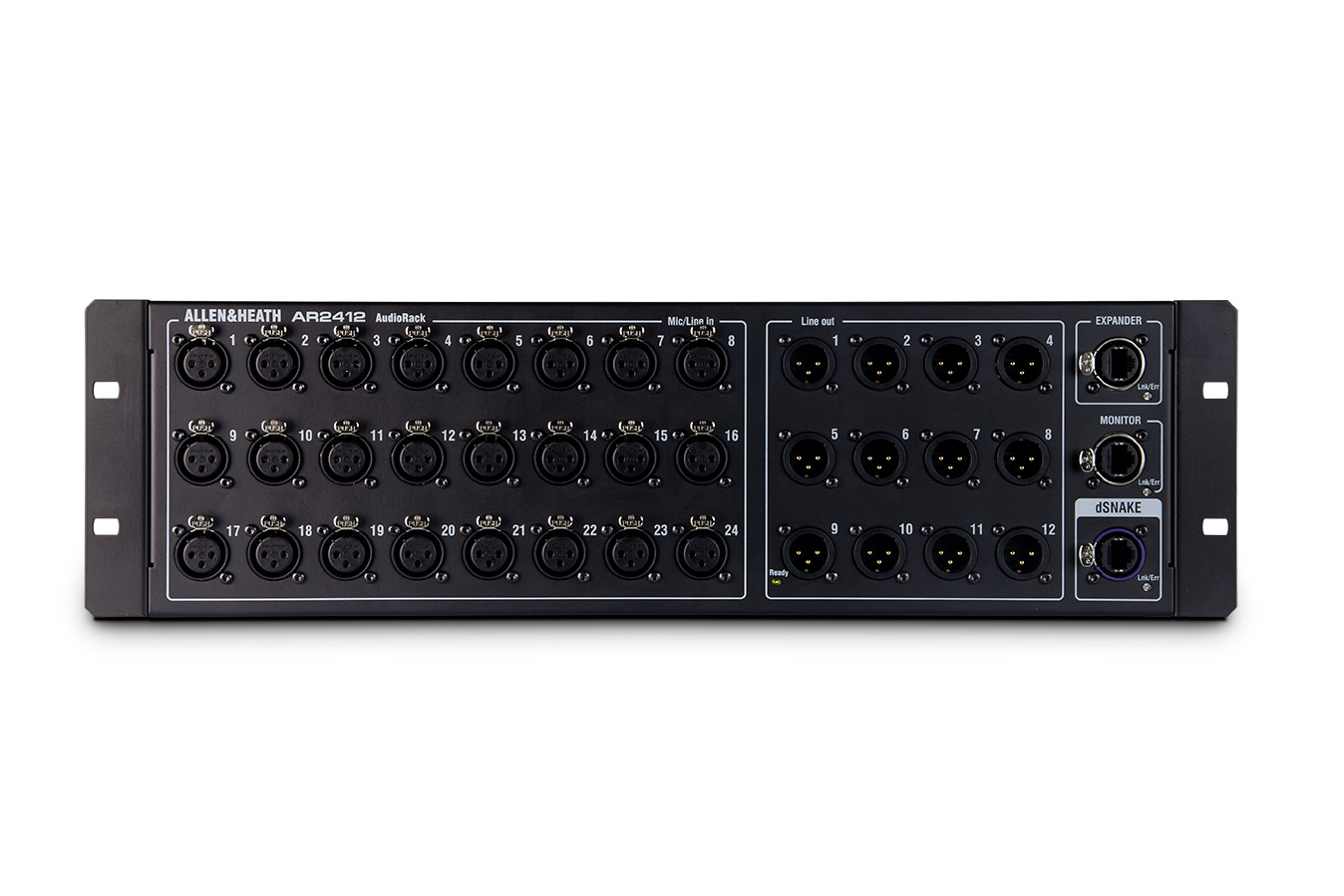

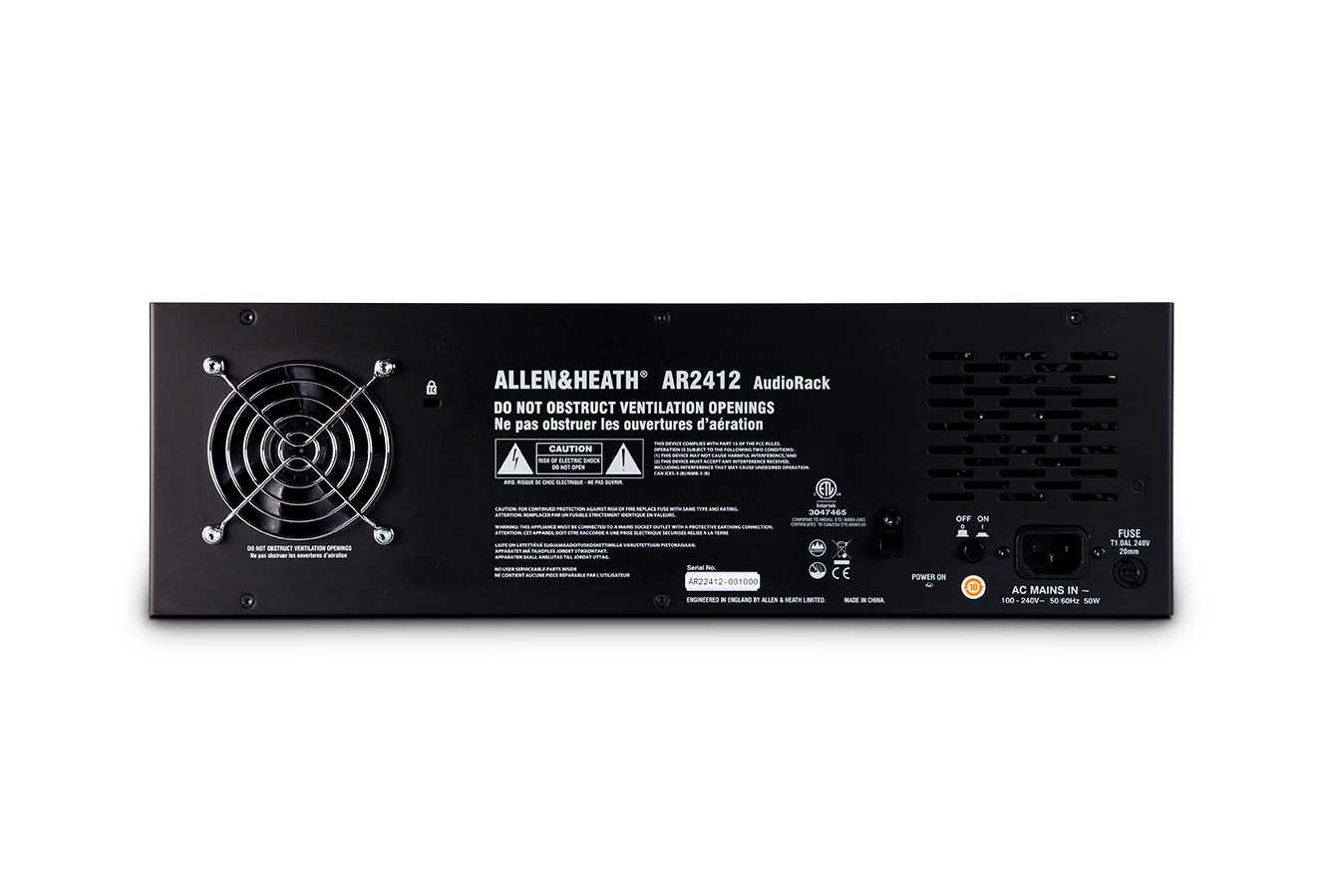

Allen & Heath AR2412 24/12 XLR Expander

Art. No. AR2412

Lease option available

Duration of agreement

Monthly amount

12 months


24 months


36 months


48 months


24 XLR Input / 12 XLR Output – 48kHz

AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor.

Adding an AR2412 to your system lets you position some or all of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.

dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.

AR2412 also includes a Monitor port for connection to ME-1 personal mixers, and an Expander port for daisy chaining to an AR84 or AB168.


  • 24 Mic Preamps on XLR
  • 12 XLR Line Outs
  • dSNAKE Connection with locking Ethercon port
  • Expander Ethercon port for connection to an AR84 or AB168
  • Dedicated port for ME personal mixing system
  • Rack mountable
