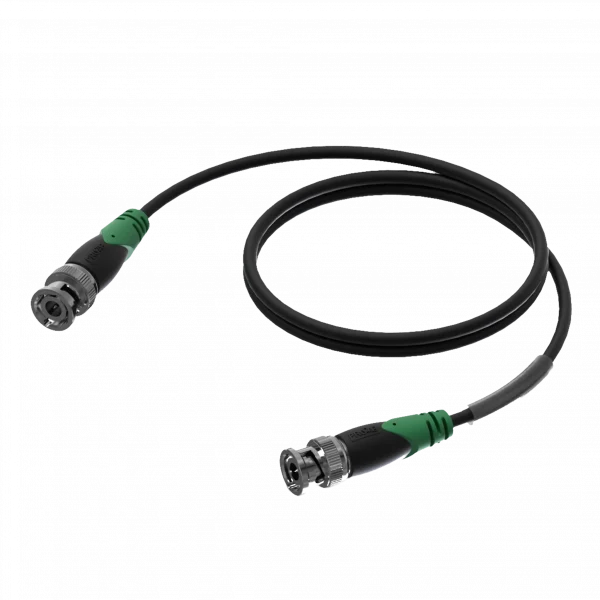

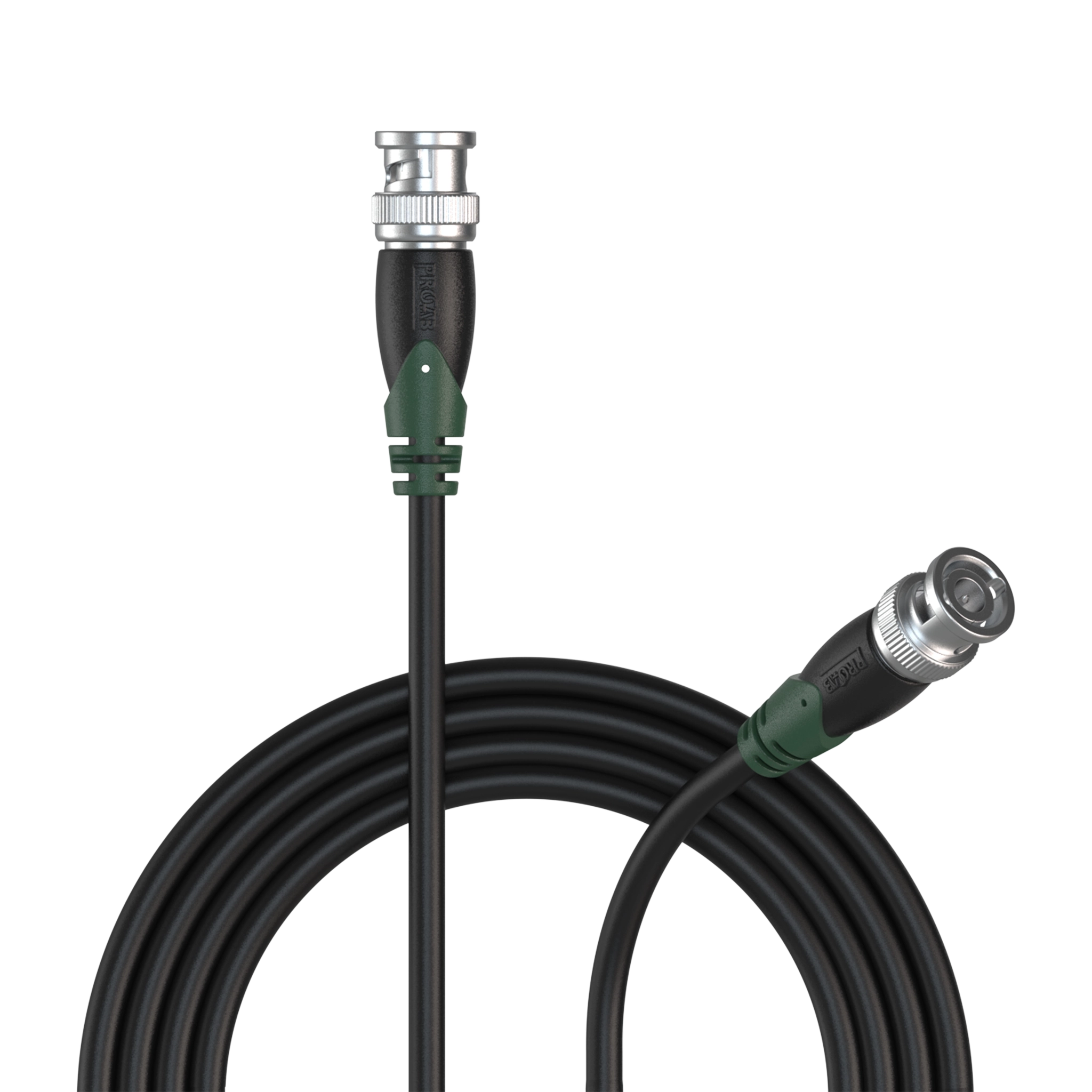

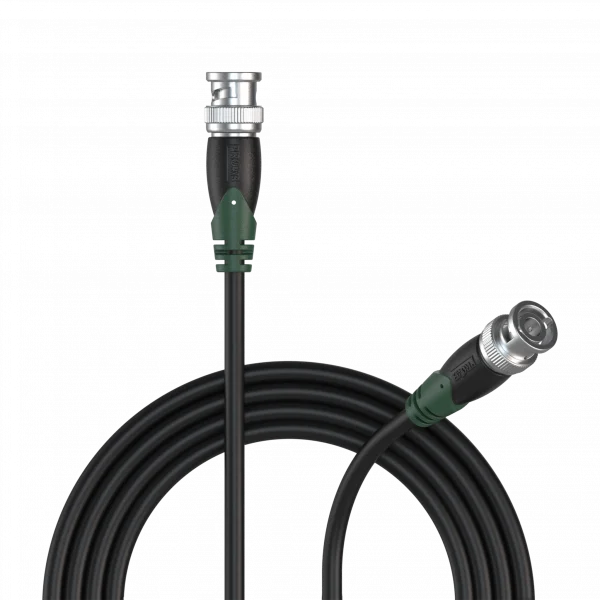

Procab CLV156 BNC Antenna Cable 50 Ohm 3m

Artikelnr. CLV156/3

 11,30

exclusief 21% BTW

Physical characteristics

Inner conductor Insulation Material PE 1.52 mm (Ø)
Colours White
Shielding Braiding BC 16 x 5 x 0.1 mm (Ø) (OFC)
Outer jacket Material PVC 5 mm (Ø)
Type of cable 50 Ω coaxial cable
Inner conductor Material BC 7 x 0.16 mm (Ø) (OFC)
Section 0.125 mm²
American Wire Gauge 26 AWG
Number of conductors 1

Mechanical characteristics

Temperature range Fixed installation – 40 °C till + 80 °C
Mobile installation – 25 °C till + 70 °C
Bending radius Fixed installation 8 x outer diameter
Mobile installation 10 x outer diameter

Electrical characteristics

Lead resistance Shielding 3.5 Ω / 100 m
13.175 Ω / 100 m
Rated voltage 30 V
Nom. Velocity of propagation 64 %
