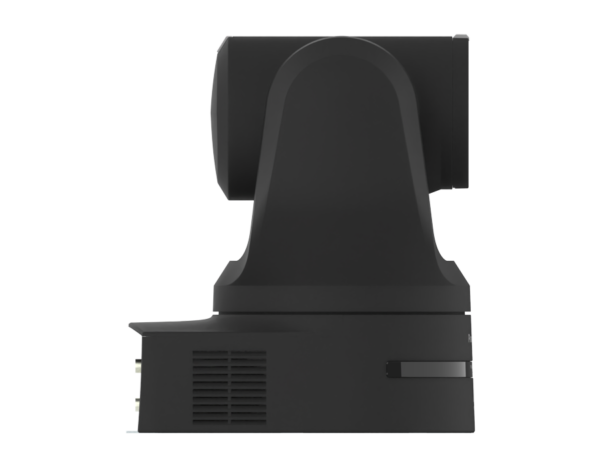

Panasonic AW-UE160 PTZ Camera System

Artikelnr. 5009025

Bekijk uw Lease prijs

Looptijd

Maandbedrag

12 maanden

€1,105,-

24 maanden

€565,-

36 maanden

€386,-

48 maanden

€296,-
General
Power Requirements 12 V DC ± 10% (10.8 V to 13.2 V)
PoE++ IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)*1
(Software authentication (LLDP) is supported).
Current Consumption 5.0A (XLR IN connector), 1.5A (PoE++ power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity 20 % to 90 % (no condensation)
Storage Temperature –20 °C to 50 °C (–4 °F to 122 °F)
Mass Approx. 4.6 kg (10.14 lbs) (excluding mount bracket)
Dimensions (W x H x D) 213 mm x 277 mm x 240 mm (8.39 inches x 10.91 inches x 9.45 inches)
(excluding protrusions, ceiling mount bracket)
Finish AW‑UE160W: Pearl white
AW‑UE160K: Black
Controller Supported AW-RP150GJ, AW-RP60GJ, AK-HRP1010GJ, AK-HRP1015GJ, AK-HRP250GJ
Camera Unit
Imaging Sensors 1-type (1″) (Effective size) 4K MOSx1
Effective Pixels Approx. 9,620,000 pixels
Lens Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches),
35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)]
Zoom • Optical zoom: 20x
• i.Zoom: UHD 24x, FHD 32x
• D.Extender zoom: 1.4x, 2x
Conversion Lens Not supported
Angle of View Range Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
Vertical angle of view: 46.7° (wide) to 2.3° (tele)
Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Optical Filter Through, 1/4, 1/16, 1/64*2, (Through is used as “Night mode”)
Focus Switching between auto and manual
Focus Distance Entire zooming range: 1000 mm (3.3 ft)
Wide end: 100 mm (0.33 ft)
Color Separation Optical System 1MOS
Standard Sensitivity F14 / 2,000lx (Low Light), F11 / 2,000㏓ (Normal)
Horizontal Resolution 1,600 TV lines Typ (Center area)
Gain Selection Auto, -6 dB to 36 dB*3
Frame Mix Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
Electronic Shutter Speed 60p 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
59.94p/59.94i 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
50p/50i 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
29.97p 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
25p 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
23.98p 1/48, 1/50, 1/60, 1/96, 1/100, 1/200, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
59.94p/120 fps 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
50p/100fps 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
Synchro Scan 60p 60.00 Hz to 7200 Hz
59.94p/59.94i 60.00 Hz to 7200 Hz
50p/50i 50.00 Hz to 7200 Hz
29.97p 30.00 Hz to 7200 Hz
25p 25.00 Hz to 7200 Hz
23.98p 24.00 Hz to 7200 Hz
59.94p/120 fps 120.00 Hz to 7200 Hz
50p/100fps 100.00 Hz to 7200 Hz
Gamma HD / NORMAL / CINEMA1 / CINEMA2*5
MASTER GAMMA (0.15~0.75)
R GAMMA (-75~+75)
B GAMMA (-75~+75)
R BLACK GAMMA (-20~+20)
B BLACK GAMMA (-20~+20)
White Balance ATW*6 : 3200K, 5600K
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value)
Chroma Amount Variability OFF, –100 % to 40 %
Scene File Scene1 to 8
Color Bar*7 SMPTE
Full Bar
ARIB (multi-format): Outputs only baseband signals
ARIB (UHD multi-format): Outputs only UHD of baseband signals
Output Format
(UHD/FHD SDI)
4K 2160/60p*8, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
HD 1080/119.88p*9*10, 1080/100p*9*10, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Output Format
(HDMI)
4K 2160/60p*8, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
HD 1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 720/59.94p, 720/50p
Output Format
(Fiber (video only))
4K 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Output Format
(ST 2110*11)
HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 720/59.94p, 720/50p
Synchronization System
Internal/External synchronization (BBS/Tri-level sync)
Input
Input Connector DC IN DC 12 V IN
G/L IN BBS (Black Burst Sync), tri-level sync supported
AUDIO INPUT 1/2 XLR (2ch) or MIC/LINE Input compatibles (SDI/HDMI/IP)
AAC compatibility (compatible with IP only)XLR 3-pin female balanced input: 2ch
• During MIC input
Input level: –50 dBu or -60 dBu/-40 dBu (0 dB=1 V/Pa, 1 kHz)
Phantom power compatible, Supply voltage: 47 V±2 V
Input impedance: Approx. 10kΩ
• During LINE input
Input level: 0 dBu (or +4 dBu/-20 dBu)
Input impedance: Approx. 10kΩ
• Input volume variable range: -40 dB to 0 dB to +20 dB (1 dB step)
• Embedded audio output level: -12 dBFS/-18 dBFS/-20 dBFS
• Sampling frequency: 48 kHz
• Quantization bit rate: 24 bit (SDI/HDMI), 16bit (IP)
Output
Video Output HDMI HDMI 2.0 standard
4:2:2/10bit*12*13
12G-SDI OUT SMPTE2082_1, SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*14
3G-SDI OUT1 SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*14
3G-SDI OUT2/PM SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*14
SFP+ SFP+ compliant (Single Fiber)*15
USB USB3.0 HOST 5G mobile router (with USB tethering support)*16
Input/Output
Input/Output Connector LAN LAN connector for IP control (RJ‑45)
RS-422 CONTROL IN RS-422A (RJ‑45)
SFP+ (ST 2110*11) Compatible protocol:
• ST 2110-10/-20/-21/-30
• PTP ST2059-2
• NMOS IS-04/IS-05
Number of outputs: Video x3 (Main line, Crop, Monitor), Audio x2
Number of inputs: Video x1 (RETURN)
Video format: FHD*17
Pan-tilt Head Unit
Pan-tilt Head Control IP connecting cable • With PoE++ ethernet hub
LAN cable*18 (category 5e or above, straight cable) up to 100 m
• Without PoE++ ethernet hub
LAN cable*18 (category 5e or above, straight cable) up to 100 m*19
AW protocol connecting cable LAN cable*18 (category 5e or above, straight cable) up to 1000 m
Installation Method Stand-alone (Desktop) or suspended (Hanging)*20
Pan/tilt Operation Speed Speed range 0.08 °/s to 180°/s (Normal mode)*21
Maximum speed Normal mode: 60°/s
Fast1 mode: 90°/s
Fast2 mode: 180°/s
Panning Range ±175°
Tilting range –30° to 210°*21
Quietness NC35 or less*22
Supported Operating Systems and Web Browsers
Supported Operating Systems and Web Browsers Windows Windows®10
Microsoft Edge
Google Chrome
Mac macOS 10.13 / Safari 13
macOS 10.14 / Safari 13
macOS 10.15 / Safari 13
macOS 10.15 / Google Chrome
iPhone/iPad/ iPod touch iOS
Safari
iPadOS
Android Android OS
Google Chrome
IP Streaming
Image Streaming Mode JPEG (MJPEG), H.264, H.265, NDI®|HX Ver.2, High Bandwidth NDI®*23*24
Image Resolution 3840×2160, 1920×1080, 1280×720, 640×360
Image Transmission Setting (JPEG) Frame Rate: Maximum 30 fps*25*26
Image quality (Fine / Normal)
Image Transmission Setting (H.264) Transmission Type Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
Transmission mode CBR, VBR
Frame Rate [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps)
[50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)
Max Bit Rate 2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps
Image Transmission Setting (H.265) Transmission Type Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
Transmission mode CBR, VBR
Frame Rate [60Hz] 30fps / 60fps
[50Hz] 25fps / 50fps
Max Bit Rate 2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps
Audio Compression Type AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol Network Protocol: ICMP, ARP, GARP, MLD
Transmission Protocol TCP/IP, UDP/IP
Application Protocol IPv4 : HTTP、HTTPS、DNS、NTP、DHCPv6、MDNS、SNMP、802.1X
IPv6 : HTTP、HTTPS、DNS、NTP、DHCPv4、MDNS、SNMP、802.1X
Video Streaming Protocol RTP / RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI®|HX ver.2,
high bandwidth NDI®
External Device Cooperation Protocol FreeD, TSL5.0, SNMP
NDI® Support
NDI® Support NDI®(High Bandwidth NDI®, NDI®|HX Ver.2)*23*24
Output Format
(High bandwidth NDI)
4K 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p
HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p*27
Image Resolution
(NDI®|HX Ver.2)
1920×1080, 1280×720*28
Image Streaming Setting High Bandwidth NDI® Transmission Type: TCP/UDP
Unicast/Multicast
Bit rate: Max 250 Mbps
NDI®|HX Ver.2 Transmission Type: TCP/UDP
Unicast/MulticastFrame rate:
[60Hz] 5fps / 15fps / 30fps / 60fps
[50Hz] 5fps / 12.5fps / 25fps / 50fps

Max Bit Rate:
512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps /4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps

Audio Compression Type High Bandwidth NDI® AAC, 48 kHz, 2 ch
NDI®|HX Ver.2 AAC-LC, 48 kHz,16 bit, 2 ch
ST 2110*9
Supported Format ST 2110 10/20/21/30
PTP ST2059-2
NMOS IS-04/IS-05
Number of Outputs (TX) Video 3 channels (Full x 1, MONI x 1, Crop x 1)
Audio 2 channels
Auxiliary data No output
Number of Inputs (RX) Video 1 channel (RETURN)*29
Audio No input
Auxiliary data No input
Output Format Video format Full x1, MONI x1, Crop x1, all the same format
1080/60p, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97p (Native), 1080/25p (Native), 1080/24p, 1080/23.98p (Native), 720/59.94p, 720/50p
Audio specifications MIC1/2 PCM / 48kHz / 24bit / 1ch x2
Input Format Video format 1080/60p*8, 1080/59.94p, 1080/50p, 1080/59.94i*8, 1080/50i*8, 1080/29.97p (Native)*8,
1080/25p (Native)*8,1080/24p*8, 1080/23.98p (Native)*8, 720/59.94p*8, 720/50p*8
New Features
HDR/SDR HLG/BT.2020 compatible,SDR/BT.709 compatible
Cropping Select from 3 types of images from 3G/SDI OUTPUT2, Crop Zoom available
F Number Display Displayed on the AW-RP15GJ and AW-RP60GJ
NDI High Bandwidth NDI®,NDI®|HX Ver.2 included as standard*30
IP Menu Display Supported*31
VR (FreeD)
(IP/RS422)
Supported
Power LED ON/OFF control
Tripod Screw Penetration Measures Yes
Image Stabilization OIS 2-axis + Hybrid method of roll direction correction
MENU switching: select between OFF/O.I.S. (Stable)/O.I.S. (Pan/Tilt)/Hybrid (Stable)/Hybrid (Pan/Tilt)
Privacy Mode The lens surface faces downward when standing by (ON/OFF)
Yellow Tally Supported
PTP Supported
5G Mobile Router
(with USB tethering support)
Compatible with recommended products only
WFM Display Output with video superimposed from 3G/SDI OUTPUT2
Focus Assist Display focus display using PDAF (Phase Detection Auto Focus)*8
Return Video Output Output return video input from ST 2110*11, NDI via SDI_OUT2

* All supported formats will be upgraded after the product is released.

Horizontal Level Gauge ON/OFF control in OSD MENU or Web GUI
Optional Accessories
Wireless Remote Controller AW‑RM50AG (Size “AA” dry battery x2, obtained separately)
  • *1:Limited in function when PoE used.
  • *2:Equipped with Low pass filter.
  • *3:Can be set in 1dB step increments.
  • *4:If format is set in 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p,1080/25p, it cannot be set.
  • *5:HLG is set in other menu.
  • *6:ATW Speed 3-stage variables
  • *7:The color bar on the IP display is not compliant with SMPTE.
  • *8:It will be supported in the future.
  • *9:1080/119.88p and 1080/100p use two 3G SDI OUT1/2 channels.
  • *10:No output from 12G/SDI.
  • *11:Requires activation with the separately sold Operational Software Key AW-SFU60.
  • *12:HDCP is not supported.
  • *13:Viera Link is not supported.
  • *14:Compatible with Level-A/Level-B.
  • *15:Optical signal input not supported.
  • *16:Limited power supply to USB_Wifi dongle.
  • *17:Follows the system format.
  • *18:STP (Shielded Twisted Pair) is recommended.
  • *19:Use Category 6 or higher for 4K video transmission.
  • *20:For safety reasons, it must be secured with the included mounting hardware.
  • *21:Depending on the PAN/TILT position, the main unit may be reflected in the video image.
  • *22:NC25 or less when P/T is stationary.
  • *23:NDI® is a new live video production workflow support protocol for IP use developed by NewTek, Inc.
  • *24:NDI® is a registered trademark of NewTek, Inc. in the United States and other countries.
  • *25:No bit rate specified.
  • *26:JPEG and H.264, JPEG and H.265 simultaneous operation depends on bit rate.
  • *27:NDI® has no image resolution specifications.
  • *28:NDI®|HX has no output format specifications.
  • *29:Output from 3G SDI OUT2 (Video is changed in the OSD menu)
  • *30:Cannot operate simultaneously with AW protocol
  • *31:Non-synchronous with SDI-OUT

Related Products

CR-X500

Canon CR-X500 PTZ Camera System

€456,- per maand

Prijs op aanvraag

CR-X300

Canon CR-X300 PTZ Camera System

€228,- per maand

Prijs op aanvraag

Canon CR-N100

Canon CR-N100 PTZ Camera System

€46,- per maand

Prijs op aanvraag

Canon CR-N300

Canon CR-N300 PTZ Camera System

€59,- per maand

Prijs op aanvraag

Open chat
1
Heeft u hulp nodig ?
Scan de code
Hallo,
Kunnen we je helpen?
