|Brightness||12,500 lm (Center)*1 / 12,000 lm*2|
|Technology||Laser 1-chip DLP|
|DLP™ chip | Panel size (mm)||17.0 mm diagonal (16:10 aspect ratio)|
|DLP™ chip | Panel size (inch)||0.67 inch diagonal (16:10 aspect ratio)|
|DLP™ Chip | Display Method||DLP™ chip x 1, DLP™ projection system|
|DLP™ Chip | Pixels||2,304,000 (1920 x 1200) pixels|
|Lens||PT-RZ120: Powered zoom (throw ratio 1.7-2.4:1), powered focus F 1.7-1.9, f 25.6-35.7 mm
PT-RZ120L: Optional powered zoom/focus lenses
|Light Source||Laser diodes laser Class 1 (Class 3R for US models)|
|Screen size (diagonal) (mm)||1.27-15.24 m, 1.27-5.08 m with ET-DLE055, 2.54-8.89 m with ET-DLE035, 16:10 aspect ratio|
|Screen size (diagonal) (inch)||50-600 inch, 50-200 inch with ET-DLE055, 100-350 inch with ET-DLE035, 16:10 aspect ratio|
|Brightness*1||12,500 lm (Center)*1 / 12,000 lm*2|
|Center-to-Corner Uniformity*1||90 %|
|Contrast*1||10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)|
|Resolution||1920 x 1200 pixels|
|Optical axis shift*2 | Vertical (from center of screen)||+50 %, -16 % (+40%, -16% with ET-DLE060) (powered)|
|Optical axis shift*5 | Horizontal (from center of screen)||+30 %, -10 % (+19%, -10% with ET-DLE060 / +28 %, -10 % with ET-DLE085) (powered)|
|Keystone Correction Range||Vertical: ±40° (±16° with ET-DLE060, ±22° with ET-DLE085/DLE055, +5° with ET-DLE035),
Horizontal: ±15° (±10° with ET-DLE060) (cannot be operated with ET-DLE035)
|Keystone correction range with optional Upgrade Kit ET-UK20||Vertical: ±45° (±16° with ET-DLE060, ±40° with ET-DLE150/DLE250 / supplied lens, ±22° with ET-DLE085/DLE055),
Horizontal: ±40° (±10° with ET-DLE060, ±15° with ET-DLE085/DLE055), When vertical and horizontal keystone are used simultaneously, correction cannot be made exceeding total of 55°.
|Installation||Ceiling/floor, front/rear, free 360-degree installation|

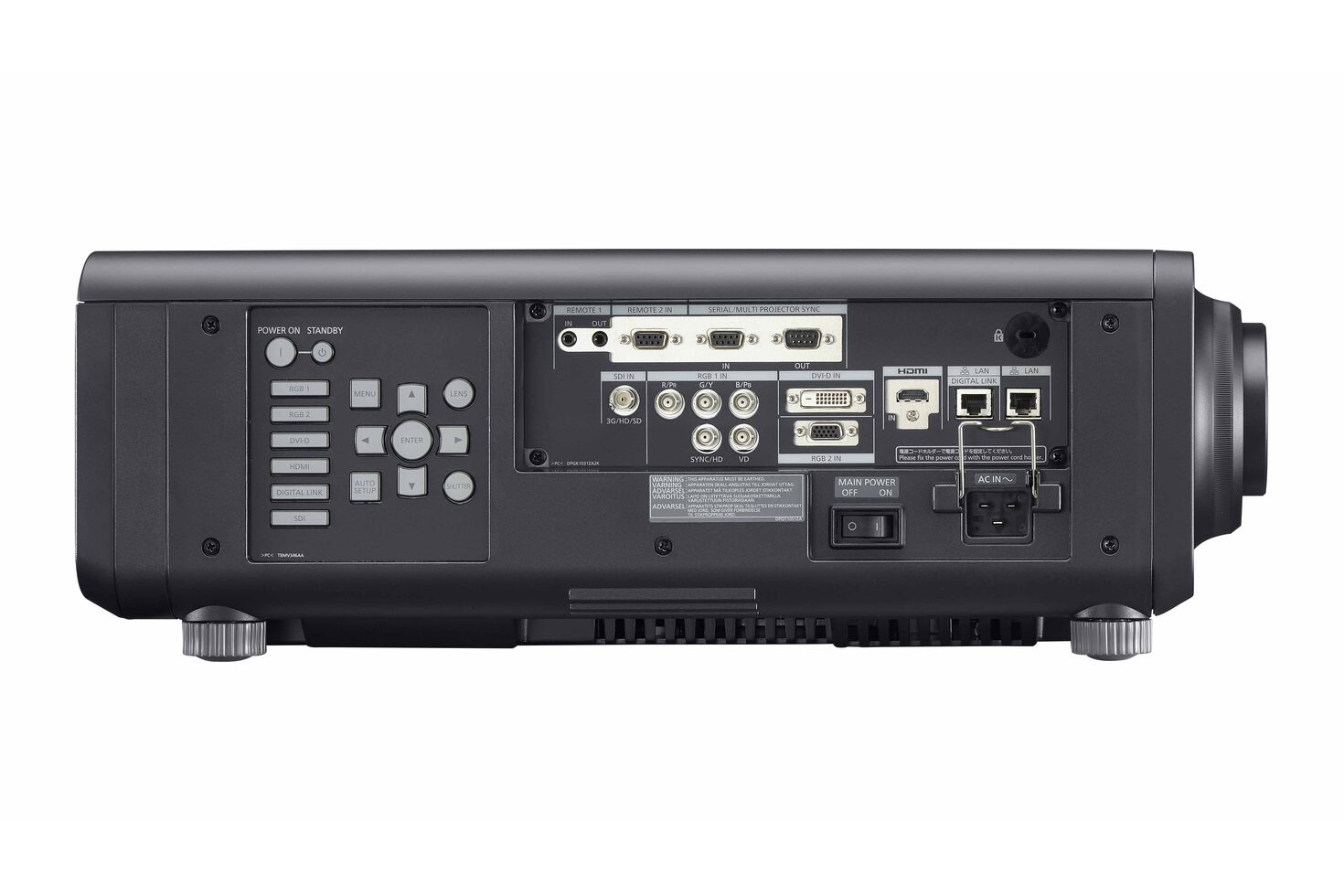

|Terminals | SDI In||BNC x 1: 3G/HD/SD-SDI input|
|Terminals | HDMI In||HDMI 19-pin x 1 (Deep Color, compatible with HDCP)|
|Terminals | DVI-D In||DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)|
|Terminals | RGB 1 In||RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR|
|Terminals | RGB 2 In||D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR|
|Terminals | Serial In||D-sub 9-pin (female) x 1 for external control (RS-232C compliant)|
|Terminals | Serial Out||D-sub 9-pin (male) x 1 for link control|
|Terminals | REMOTE 1 IN||M3 x 1 for wired remote control|
|Terminals | REMOTE 1 OUT||M3 x 1 for link control (for wired remote control)|
|Terminals | Remote 2 In||D-sub 9-pin (female) x 1 for external control (parallel)|
|Terminals | LAN||RJ-45 x 1 for network connection, 10Base-T, 100Base-TX, compatible with PJLink™|
|Terminals | DIGITAL LINK||RJ-45 x 1 for network and DIGITAL LINK connection, 100Base-TX, compatible with PJLink™ (Class 2), HDCP, Deep Color|
|Power Supply||AC 100-240 V, 50/60 Hz|
|Power Consumption||1,275W (TBD)|
|Operating noise*3||46 dB (TBD)|
|Cabinet Materials||Molded plastic|
|Dimensions (W x H x D) (mm)||PT-RZ120: 498 x 200*4 x 581 mm (with supplied lens)
PT-RZ120L: 498 x 200*3 x 538 mm (without lens)
|Dimensions (W x H x D) (inch)||PT-RZ120: 19 19/32 inch x 7 7/8 inch *3 x 22 7/8 inch (with supplied lens)
PT-RZ120L: 19 19/32 inch x 7 7/8 inch *3 x 21 3/16 inch (without lens)
|Weight (kg)*6||PT-RZ120: Approximately 25.2 kg (with supplied lens) (TBD)
PT-RZ120L: Approximately 24.4 kg (with supplied lens) (without lens) (TBD)
|Weight (lbs.)*6||PT-RZ120: Approximately 55.6 lbs (with supplied lens) (TBD)
PT-RZ120L: Approximately 53.8 lbs (with supplied lens) (without lens) (TBD)
|Operating environment (℃/M)||Operating temperature: 0-45 °C *5, operating humidity: 10-80 % (no condensation)|
|Operating environment (°F/Feet)||Operating temperature: 32-113 °F *5, operating humidity: 10-80 % (no condensation)|
|Applicable software/application||Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™|
|Note||Note: PT-RZ120L offers the same performance as PT-RZ120, but comes without a lens.
*1 Luminance measured at center of screen.
*2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
*3 Lens shift is not supported on the ET-DLE055, and the optical axis is fixed with the ET-DLE035.
*4 With legs at shortest position.
*5 The light output may be reduced to protect the projector depemding on the temperature or altitude of operational environment.
*6 Average value. May differ depending on the actual unit.
